EasyPro HTH Horizontal Stainless Steel Pond Pump | 1/3, 1/2 & 1 HP

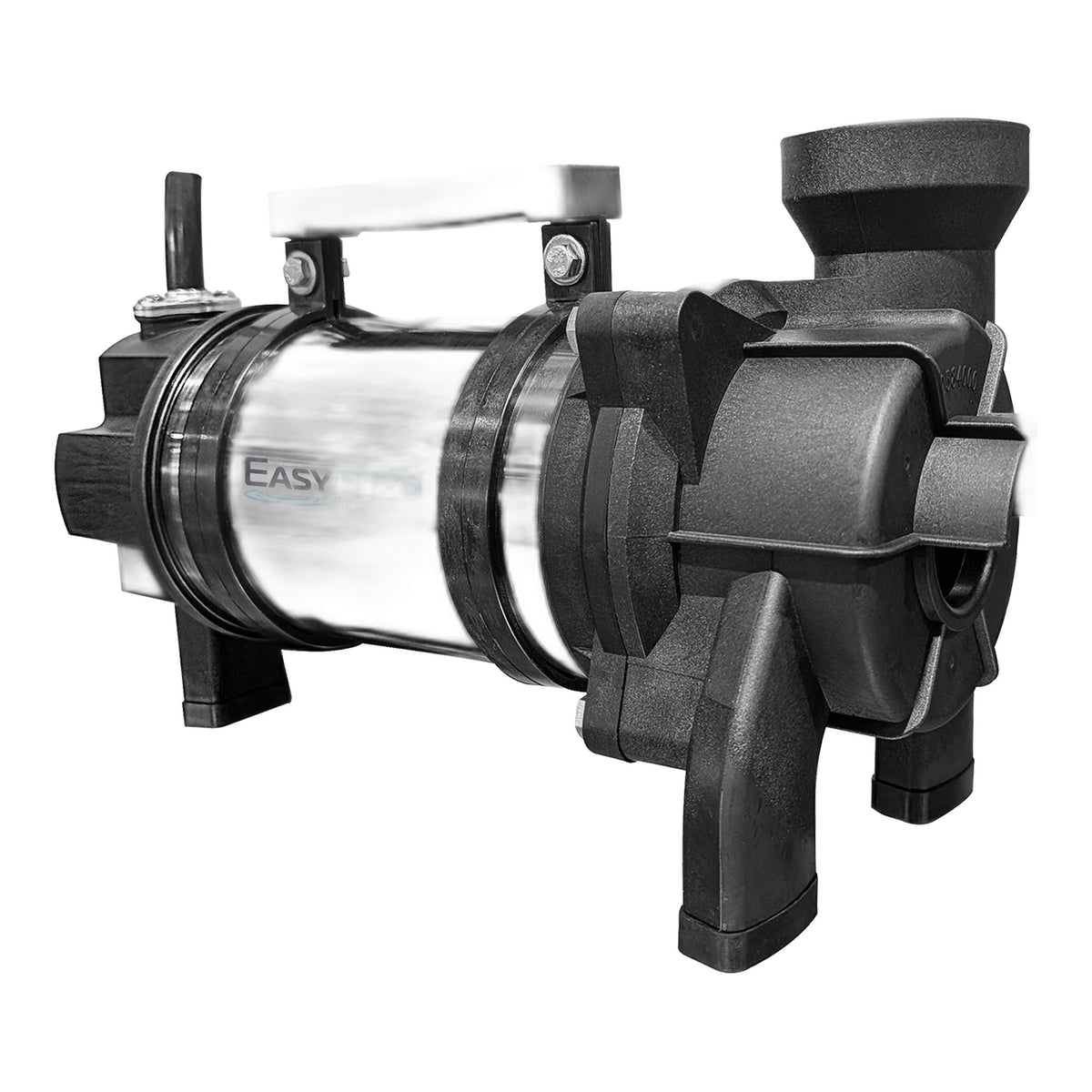

EasyPro HTH Horizontal Pump

Same motor family as the upright TH series, laid on its side so it fits a short skimmer or pump vault. Continuous-duty. Stainless steel motor can. Fiber-reinforced casing. Nylon vortex impeller. Dual mechanical seals. Built-in thermal overload. Must run fully underwater. 1/3, 1/2, and 1 HP  available in 115 V or 230 V.

Use it for waterfalls, streams, and pond circulation. It is a submersible pump. Do not run it dry or half out of the water. A dirty skimmer net that starves the intake will cook the motor. That is not warranty.

Pick voltage first
115 V for a normal house outlet. 230 V if that is what the pad is wired for. Do not put a 230 V pump on 115 V.

Then pick HP by head

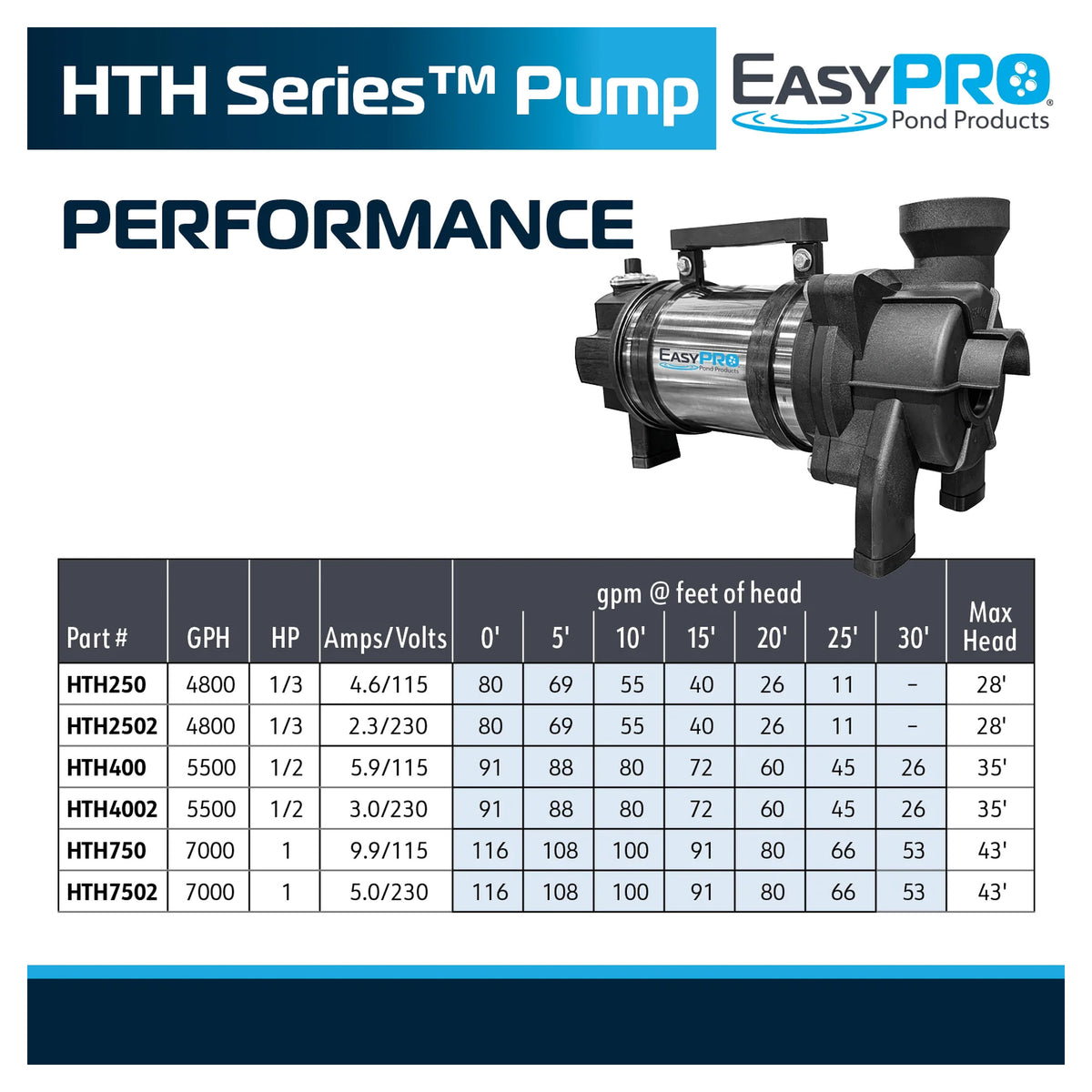

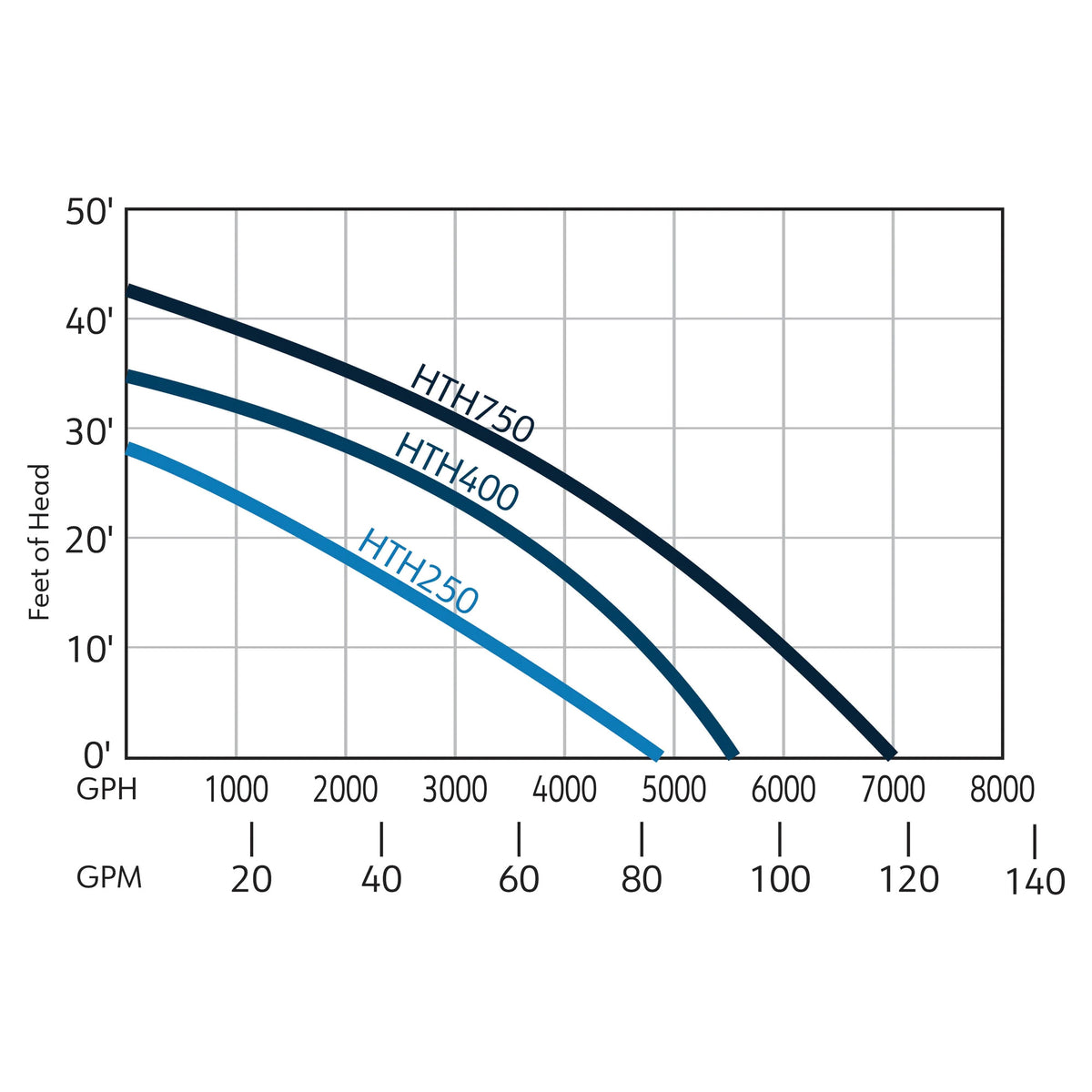

Measure vertical lift from the pump to the top of the falls, plus friction in the pipe. If you need 20 ft of head, the 1/3 HP is already down near 1,560 GPH. Step up.

Install

• Sit the pump on a flat base, fully underwater.
• Do not hang it by the cord.
• 2" female thread on the discharge.
• Dedicated outlet. GFCI.
• Optional EasyPro bottom screen THPS if debris is heavy.

Not this pump
Upright TH150 / TH250 / TH400 / TH750 are a different body and different GPH. Do not order those if you need the horizontal fit.

Warranty
2-year manufacturer limited warranty from purchase. Keep the receipt.

Need help matching HP to a falls height? Call (619) 993-0277.

FAQ

TH or HTH?
HTH = horizontal. TH = stands up. Same brand, different shape.

Can it sit on land and pull water?
No. Submersible only.

50' or 100' cord?
Ask. Those are 115 V options, not on this page yet.
